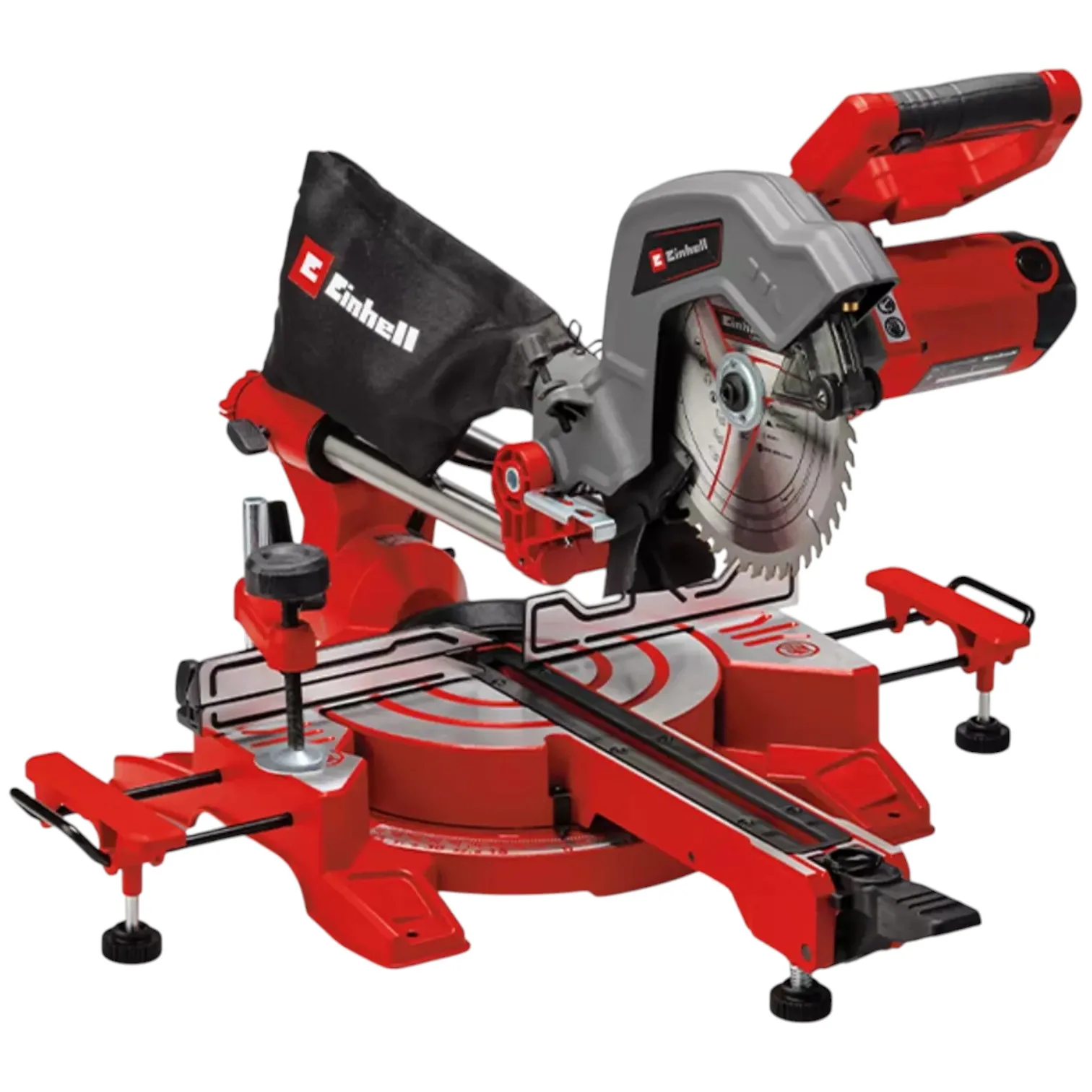

This sturdy saw has a smooth draw function for wide workpieces. The turntable has a precise angle adjustment facility to make it easier to achieve good angular cuts. For the most common angles on do-it-yourself jobs, locking positions are provided on the turntable for adjusting the angle quickly and reliably. There are easy-to-read scales for the angles and widths. Also, the saw head can be tilted to the left for miter cuts. The cutting width is up to 305 millimeters with a 90° setting and up to 210 millimeters with an angle of 45°. The integrated cutting line laser is an enormous help when working. Supports for longer workpieces are provided on the left and right, and there is a practical clamping device for securing the workpieces. The high-grade carbide saw blade delivers perfect cuts. To make it easier to change the saw blade there is a spindle lock. For more effective removal of the sawdust there is a dust funnel behind the saw blade. The extractor connection which is provided has a diameter of 36 millimeters, or the supplied dust bag can be used as an alternative.
Cutting depth 45° x 45° | 35 mm |
Cutting depth 90° x 90° | 65 mm |
Cutting width 45° x 45° | 215 mm |
Cutting width 90° x 90° | 305 mm |
Idle speed max. | 5200 min^-1 |
Max. swivel range (saw head) | 0 ° |
Max. swivel range (saw table) | 47 ° |
Min. swivel range (saw head) | 45 ° |
Min. swivel range (saw table) | 47 ° |
Number of saw blade 1 teeth | 48 pcs |
Power S6 | 1600 W |
Product weight | 11.54 Kg |
Saw blade 1 diameter | 216 mm |
Saw blade holder diameter | 30 mm |
