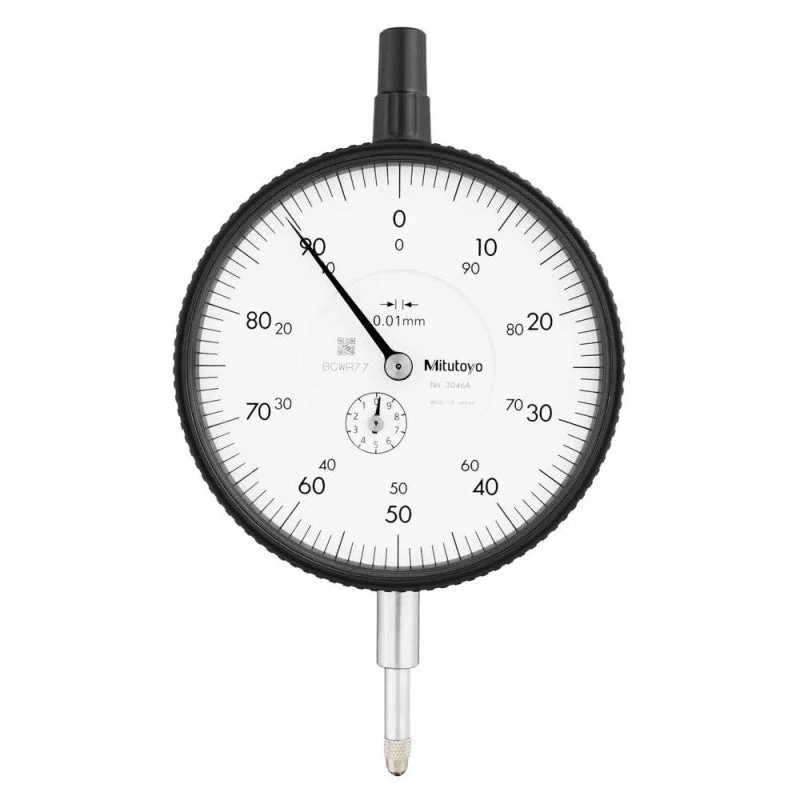

אינדיקטור קוטר תצוגה 78 מנ"מ – מהלך 10 מ"מ דיוק 0.01 מ"מ

The Mitutoyo large dial face dial indicator combines excellent accuracy and reliability with a large, easy-to-read dial face. The 3046A stem design provides a long clamping range for use in many different applications. The spindle and stem are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. The absence of a through screw hole helps protect the indicator against water and oil permeation. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools. The Mitutoyo Series 3 large-diameter dial indicator measures surface variations with great accuracy displayed on an easy-to-read dial face.

Specifications

● Range: 0-10mm
● Graduation: 0.01mm
● Range/Rev: 1mm
● Dial Reading: 0-100
● Type: With Flat
● Accuracy: +/- 0.015mm
● Measuring Force: 1.4N or less
● Stem/Shank: 8mm
● Contact Point: M2.5 x 0.45 Thread
● Shockproof Type: No
● Jeweled Bearing Type: No
● With Coaxial Revolution Counter Type: No
● With Damper at Lowest Rest Point Type: No
● Type: ISO/JIS
