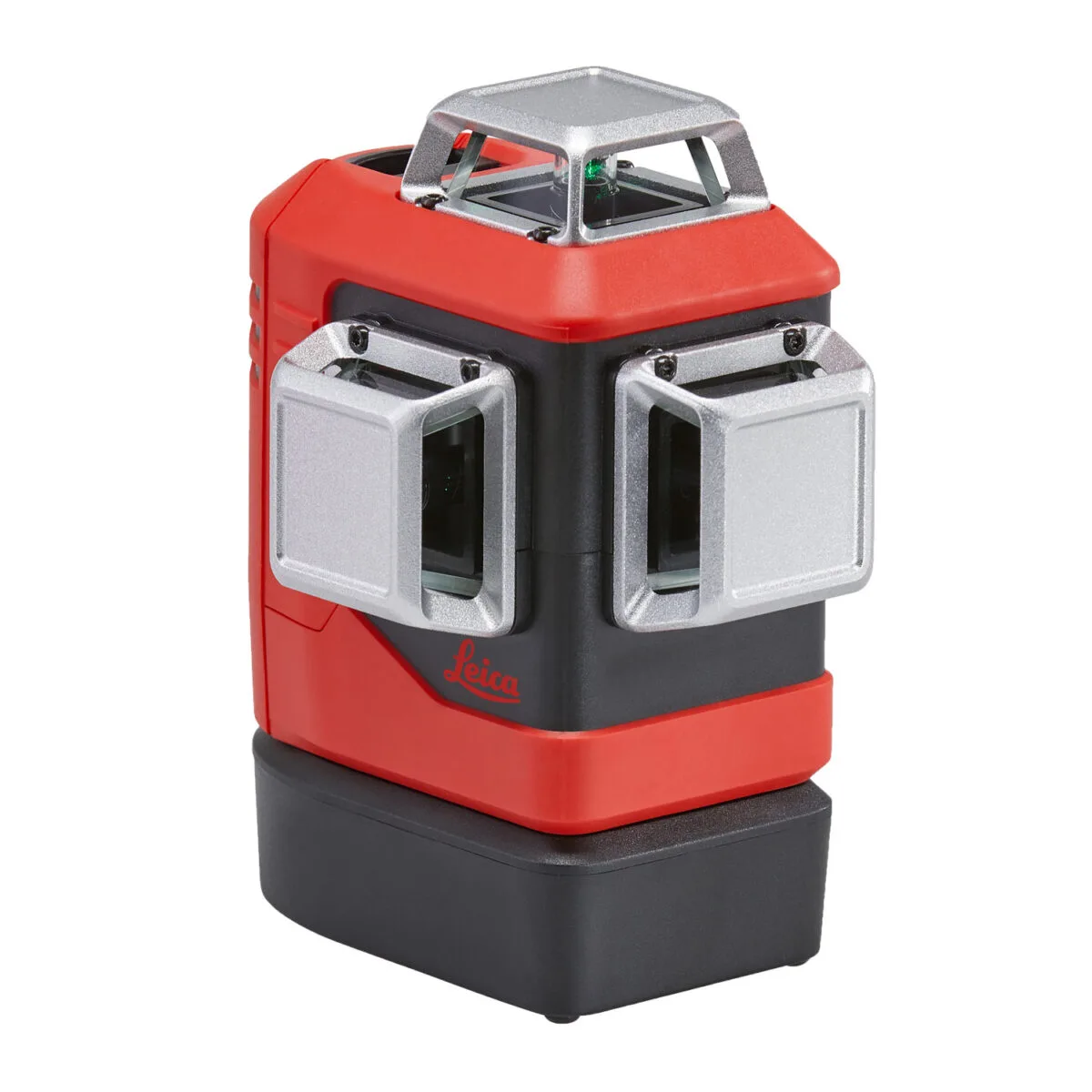

מאזנת לייזר ירוק 3 מימדים 360° – ניתן לרכוש גלאי בנפרד

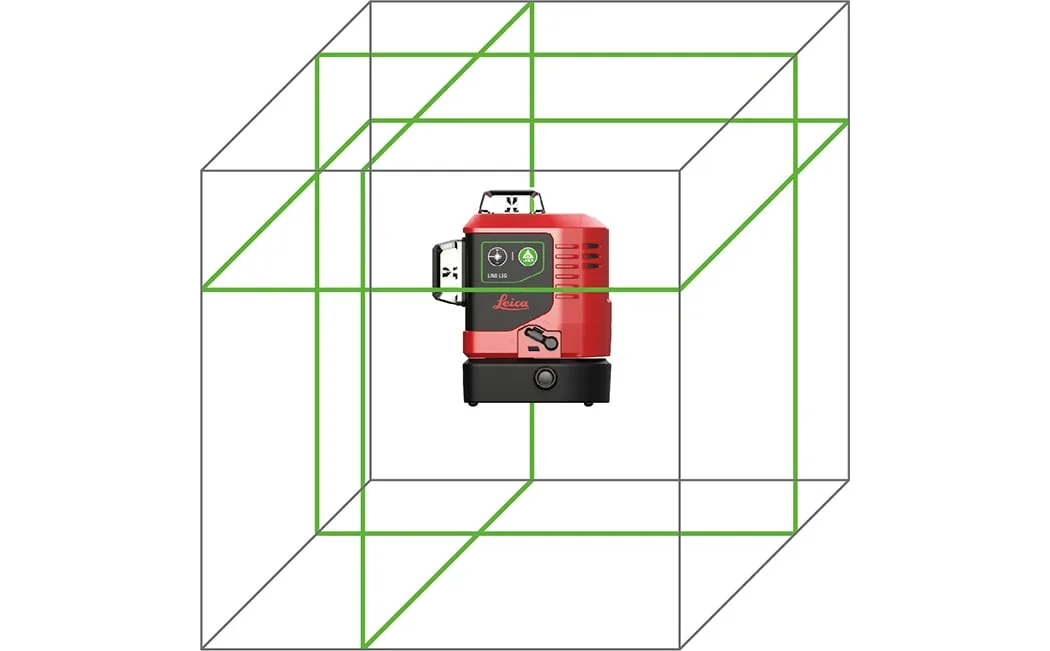

Beam horizontal 360°
Beam vertical 2 x 360°
Intersection points up, down, right, left, front, back (90° / 180°)
Range / diameter* 25 m / 50 m (82 ft / 164 ft)
Range / diameter* with Leica RGR 200 receiver 70 m / 140 m (230 ft / 460 ft)
Levelling accuracy ± 0.2 mm/m (± 0.002 in/ft)
Horizontal- and vertical line accuracy ± 0.3 mm/m (± 0.004 in/ft)
Intersection point accuracy ± 0.2 mm/m (± 0.002 in/ft)
Self-levelling range ± 4°
Self-levelling time < 3 sec
Fine adjustment ± 10° around vertical intersection point
Out-of-level warning yes – blink lines every 5 s
Levelling pendulum (lockable)
Laser 635 nm / class 2 (acc. to IEC 60825-1)
Protection class IP54 (dust and splash water)
Battery type 3 x AA Alkaline
Lino Li-Ion battery pack
5200 mAh / 18.7 Wh
or 3 x AA Alkaline
Laser line intensity (selectable) 100 %, 75 %, 50 %
Operating time with Li-Ion optional up to 36 h (3 beam, 50 % power)
Operating time with Alkaline up to 25 h (3 beam, 50 % power) up to 25 h (3 beam, 50 % power)
Dimensions 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in)
Weight 781 g (1.71 lbs)
Operation temperature -10 to +50° C (14 to 122° F)
Storage temperature -25 to +70° C (-13 to +158° F)
Laser line width @ 5 m (16.4 ft) distance < 2 mm (< 0.08 in)
Tripod thread 1/4 in (5/8 in with adapter)
Pulse power for receiver yes
