משאבה חיצונית 0.50 כ"ס חד פאזי תוצרת איטליה "1/"1 (ללא בקר) K 20/41 M

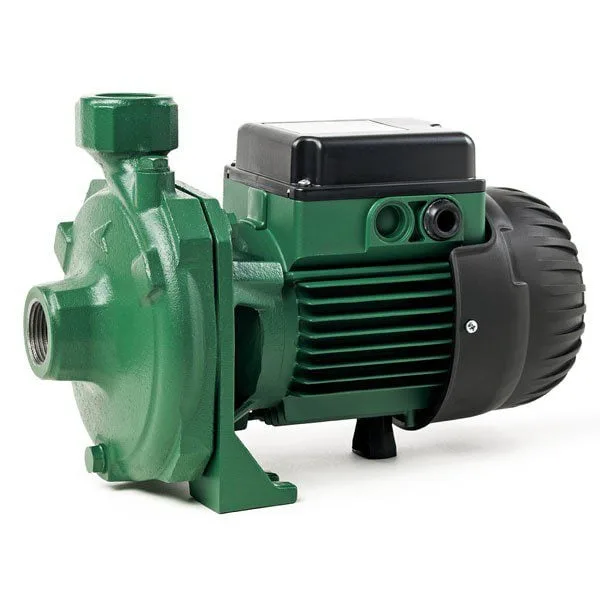

The K 20/41 M from DAB is a single impeller centrifugal pump designed for use in pressurisation units for water supply systems for domestic, civil and industrial use. Suitable for sprinkling irrigation and other water supply applications.

Details

• Cast iron pump body and motor support.
• Technopolymer impeller.
• Stainless steel driving shaft.
• Carbon/ceramic mechanical seal.
• Asynchronous, closed motor, cooled by external ventilation.
• Built-in thermal and current overload protection and a capacitor permanently on in the singlephase version.
• For the protection of the three-phase motor it is advisable to use a suitable overload protection complying with the regulations in force.

Features

• Operating range: from 1.8 to 96 m3/h with head up to 62 metres.
• Pumped liquid characteristics: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised, chemically neutral and close to the
• characteristics of water.
• Liquid temperature range: from -10°C to +50°C:
• Maximum operating range: 6 bar (600 kPa)
• Maximum ambient temperature: +40°C.
• Protection level: IP 44.
• Terminal board protection level: IP 55.
• Insulation class: F.
