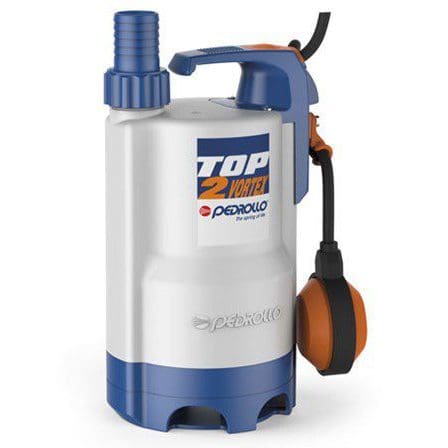

משאבה טבולה למים "¼1 עד 7 מטר למים מלוכלכים 7m עם מצוף איטליה Pedrollo TOP 2 VORTEX

Flow rate up to 180 L/min 10.8 m³/hr
Dynamic head up to 7 m

OPERATING LIMITS

Maximum operating depth 3m below water level
Maximum Fluid temperature + 40 °C
Maximum passage for suspended solids Ø 20mm
Maximum emptying level 25mm from the bottom

Design, technology and innovative materials are the main features behind the new TOP VORTEX pump, designed to be easy to use and extremely reliable. The vortex system allows dirty water drainage without fear of the impeller clogging.

PUMP INSTALLATION AND APPLICATIONS

TOP VORTEX pumps are suitable for handling dirty water, not chemically aggressive to the pump components. This pump has been designed for ease of use and is extremely reliable even when subjected to continuous use as the motor is fully cooled. It is particularly suited for domestic use, to drain dirty water in all cases where suspended solids up to Ø 20mm have to be dealt with.

RECOMMENDED APPLICATIONS THEREFORE INCLUDE EMPTYING OF POOLS AND TANKS, DISPOSAL OF DOMESTIC SEWAGE, EMPTYING OF SUMP PITS.

STRUCTURAL CHARACTERISTICS

• DELIVERY BODY made from fibreglass reinforced techno-polymer, particularly resistant to mechanical stress, knocks and corrosion, fitted with UNI ISO 228/1 1inch or 1¼ inch gas threaded vertical delivery port.
• SUCTION STRAINER made from fibreglass-reinforced techno-polymer, providing the support base for the pump.
• Techno-polymer HOSE CONNECTION with screw fitting
• Fibreglass reinforced NYLON PA6 techno-polymer open IMPELLER
• EXTERNAL FLOAT SWITCH for automatic pump operation.
• AISI 416 stainless steel MOTOR SHAFT
• DOUBLE SEAL SYSTEM carbon / alumina (or optional silicon carbide hard faced) mechanical seal on the pump side, and lip seal on the motor side. A barrier oil chamber of bio-degradable oil lubricates and cools the sealing surfaces in the absence of water.
• Sealed induction MOTOR suitable for continuous duty with built-in thermal cutout device (motor protector). INSULATION class F (provides the motor with a considerable overload tolerance and substantially increases the service life of the motor itself). Motor cooling is assured by the pumped liquid.
• PROTECTION IP 68.
• UK pumps supplied with 10 metres of cable. Other alternatives on request.
• CONSTRUCTION AND SAFETY STANDARDS in compliance with EN 60 335-1 (IEC 335-1, CEI 61-150) EN 60034-1 (IEC 34-1, CEI 2-3).
