Working range*	15 m
Accuracy*	± 0.3 mm/m
Laser diode	Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW
Operating temperature, from	-10 °C
Operating temperature, up to	50 °C
Operating temperature	-10 – 50 °C
Storage temperature, from	-20 °C
Storage temperature, up to	70 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range of laser points, max.	10 m (top), 10 m (bottom)
Self-levelling range*	± 4°
Levelling time	4 s
Dust and splash protection	IP 54
Power supply	3 x 1.5 V LR6 (AA)
Operating time (max.)	6 h in cross line and point mode, 8 h in cross line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode
Tripod thread	1/4", 5/8"
Weight, approx.	0.49 kg
Colour of laser line	green
Projection	2 lines / 2 points
Plumb point accuracy	± 0.7 mm/m

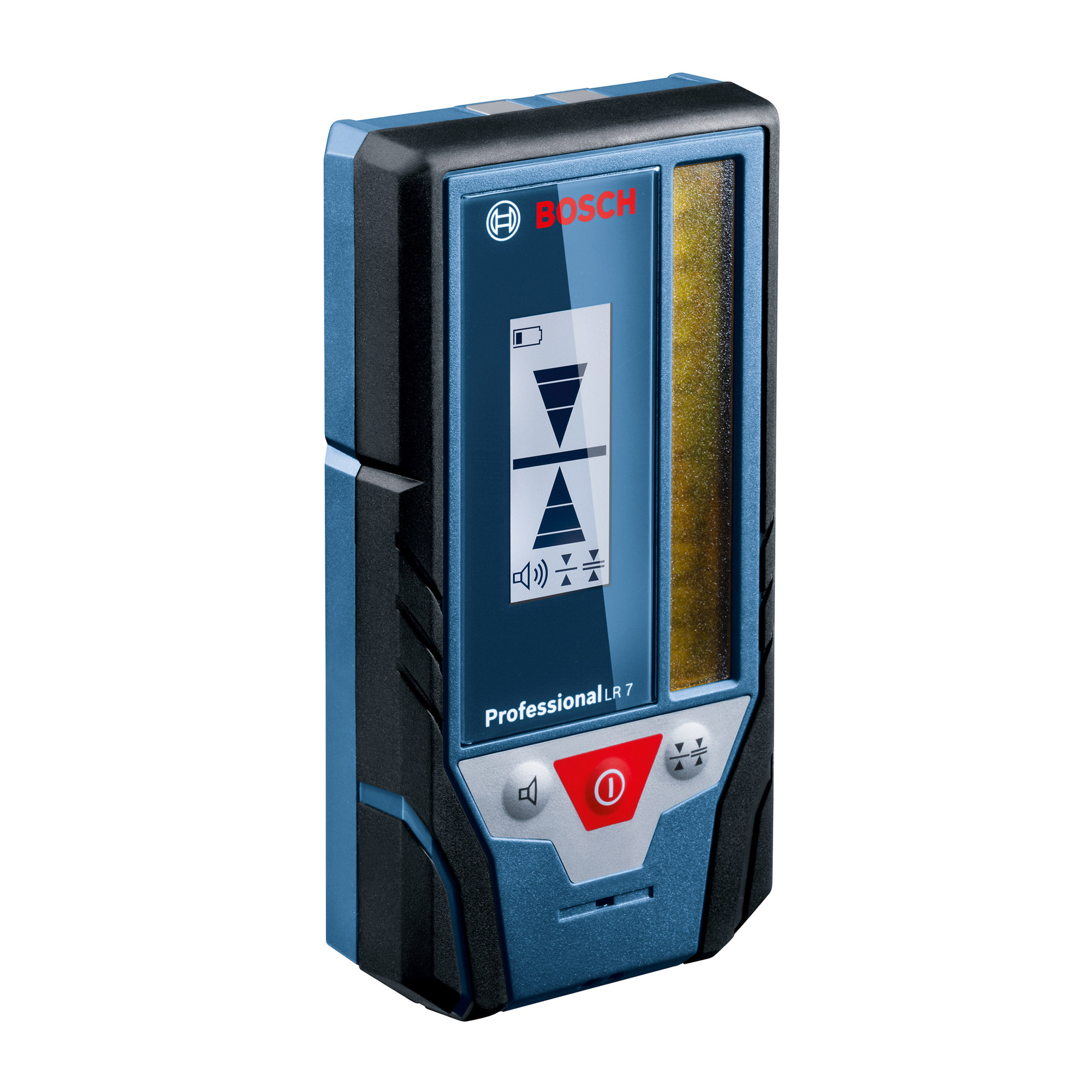

קולט קרן – גלאי לדגמים GLL3-80CG, 3-80C
