סמן קידוח מקצועי לסימון קדח כניסה ויציאה בקיר

Professional drill guide for reliable determination of entry and exit points of wall and ceiling drill holes

המלאי אזל

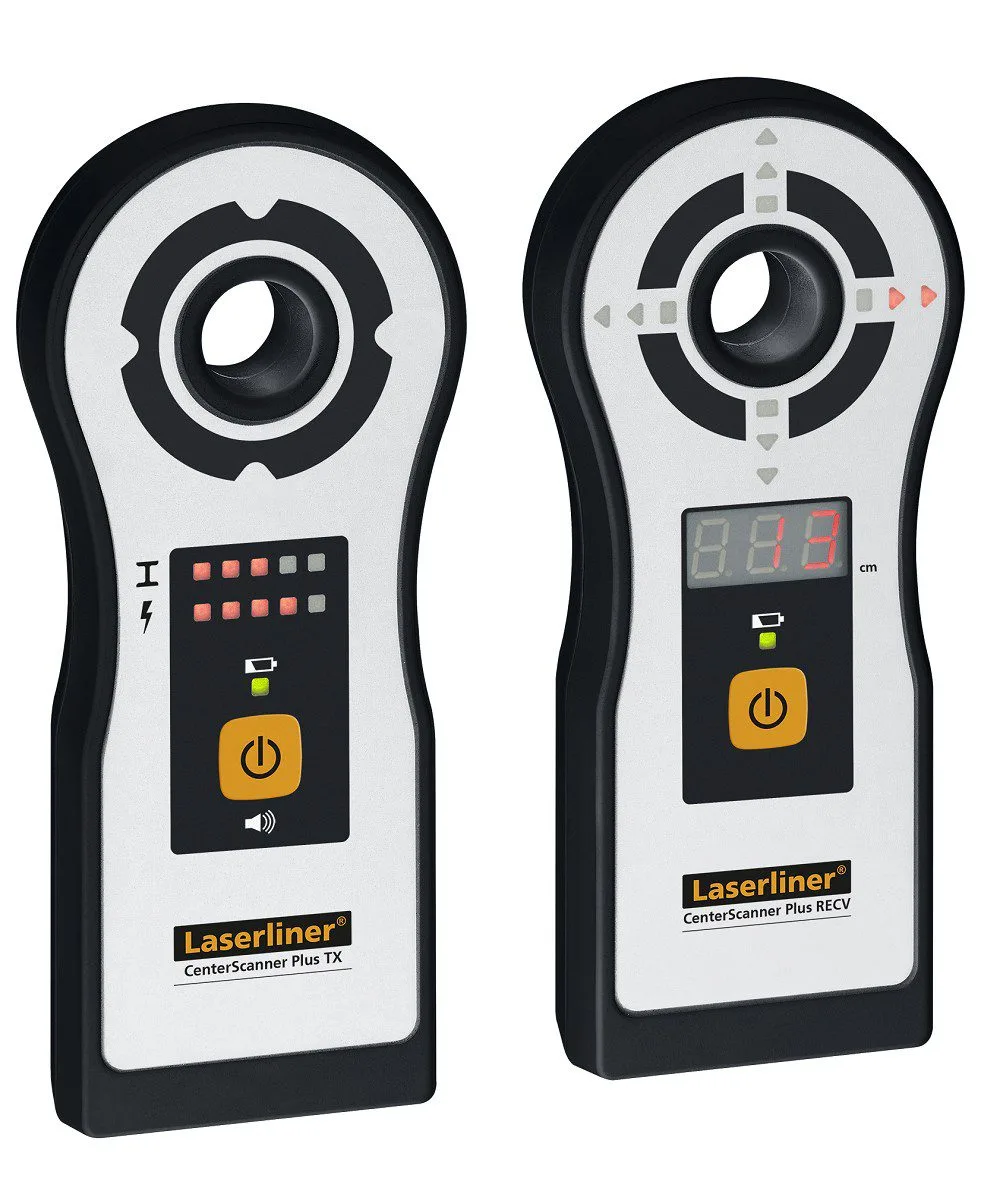

System consisting of a transmitter & a receiver enables easy drill channel alignment
Clearly visible LED indicators enable precise localization of entry & exit positions
Easily accessible marking aids in the transmitter & receiver for centering
Integrated display can be used to determine the required drilling depth up to 200 cm
TX transmitter with integrated metal & voltage detection up to 150 cm to prevent misplaced holes
Visual & acoustic warning when foreign objects are detected

Technical data

TRANSMITTER POWER SUPPLY	3 x AAA
STORAGE CONDITIONS	-40°C … 60°C, humidity < 80%, no condensation
INDICATORS	13 LEDs, acoustic warning signal
MEASURING DEPTH	up to 150 cm for position detection up to 200 cm for depth display
LED DISPLAY	3 x 7 segment
OPERATING TIME	approx. 20h
ACCURACY	typical 3% of measuring depth
OPERATING CONDITIONS	-30°C … 40°C, humidity < 80%, no condensation
DIMENSIONS (W x H x D)	75 x 172 x 28 mm
RECEIVER WEIGHT (incl. batteries)	210 g
INDICATORS	11 LEDs, acoustic warning signal
OPERATING TIME	approx. 12h
OPERATING CONDITIONS	-30°C … 40°C, humidity < 80%, no condensation
STORAGE CONDITIONS	-40°C … 60°C, humidity < 80%, no condensation
RECEIVER POWER SUPPLY	3 x AAA
DIMENSIONS (W x H x D)	75 x 172 x 28 mm
WEIGHT (incl. batteries)	200 g
