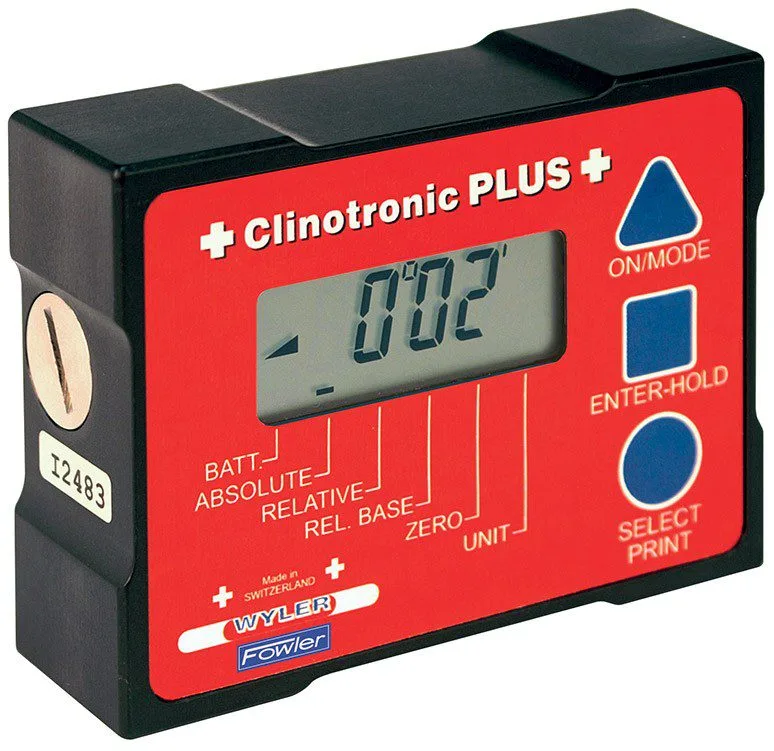

פלס דיגיטלי קלינומטר תעשייתי קטן ומדוייק ליישומים תעשיתיים מדוייקים 5arcsec בזוית ±45°

• Range of ±45°, capacity of 0-360°.

• Resolution of 0.01° (selectable).

• Adjustable base length.

• Built-in calibration program.

• Uses standard 1.5v AA batteries.

• Desired units to be selected by push button.

• Automatic setting of zero by push button command.

• Display: use any units common to inclination measurements.

• Absolute or relative measuring mode selectable by push button.

• Seal-tec technology for excellent performance even in difficult environmental conditions.

• Interface connection RS232 is integrated.  Special purpose cables available.

• Low battery indication.

• No loss of calibration data by power failure.

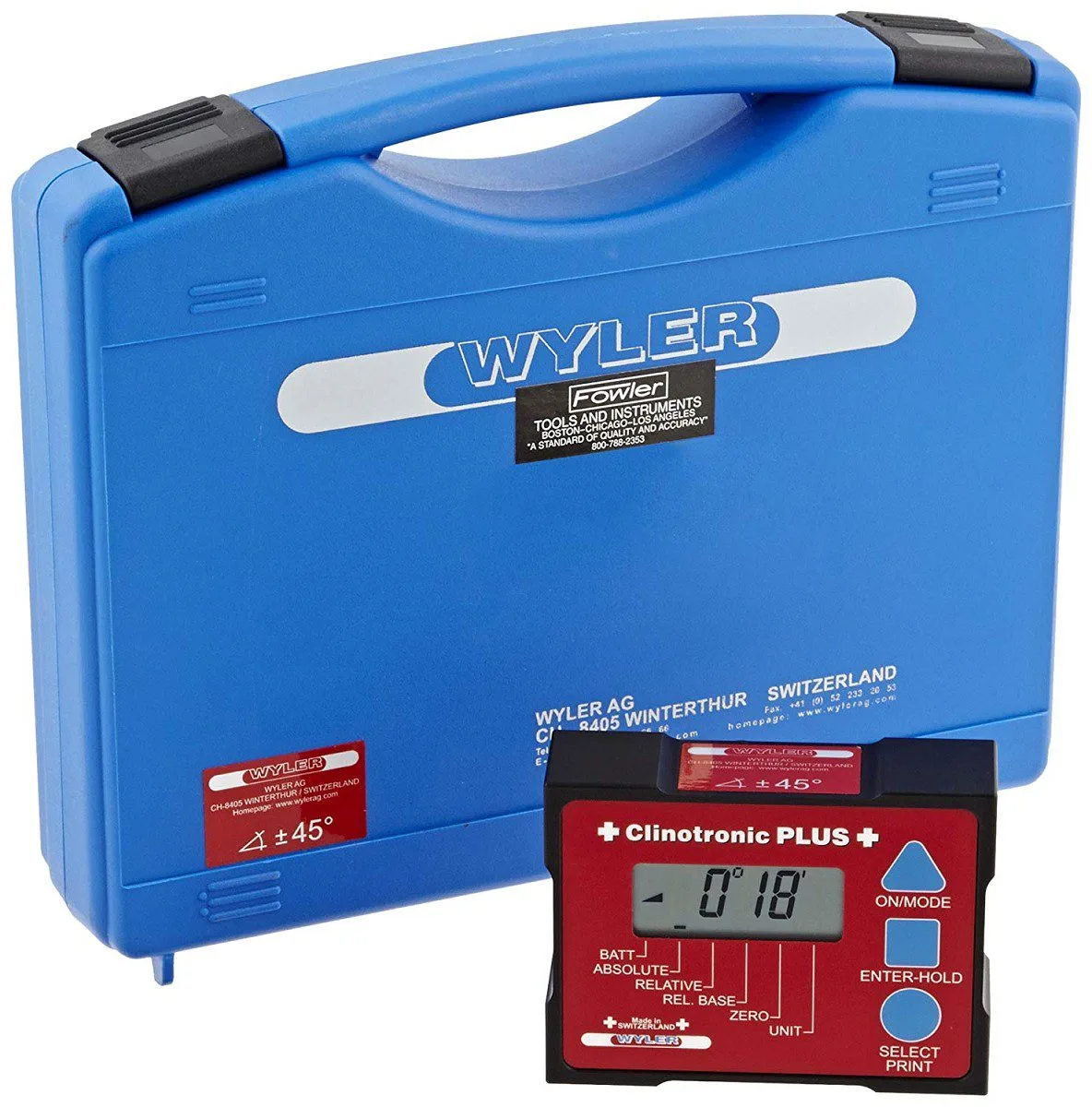

• Price includes fitted case.





Technical Specifications:
Measuring range/capacity: ± 45°/0-360°

Response time: value available within 5 seconds.

Repeatability: <.01°

Temp. coefficient: less than 0.01°/°C.

Data output: Serial

Battery: Standard AA 1.5V alkaline/130hrs or AA 3.0V Mn02-Lithium (for longer operation 300/hrs)

Housing: aluminum hard anodized

Dimensions: 4 x 3 x 1″(100 x 75 x 30mm)

Weight: 13 oz.(380 grams)

Temp. range: operational 0 to 40°C.

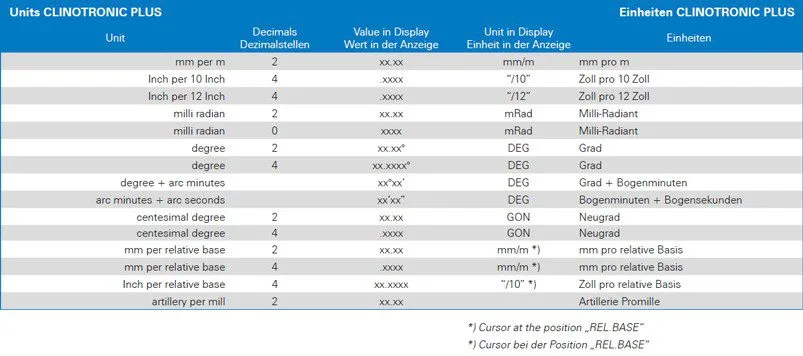

The following measuring units may be selected:

Deg/Arcmin: 00° 00'

Arcmin/Arcsec: 00' 00"

GON/Neugrad (2 Dec): 00.00 gon

GON/Neugrad (4 Dec): .0000 gon

mm/rel. Basis (2 Dec): 00.00 mm/m

mm/rel. Basis (4 Dec): .0000 mm/m

Inch/rel. Basis (4 Dec): .0000"/10"

Artillery per mile A%: 0000

mm/m (2 Dec): 00.00 mm/m

Inch/10 Inches: .0000"/10"

Inch/12 Inches: .0000"/12"

Milliradian: 00.00 mrad (2 Dec)

Milliradian: 0000 mrad

Deg (2 Dec): 00.00°

Deg (4 Dec): .0000°

Linearity

Measuring Value / Limits of Error

≤ 10° / < 1 arcmin + 1 digit

> 10° ≤ 30° / < 1.5 arcmin + 1 digit

> 30° ≤ 45° / 2 arcmin + 1 digit
