| יצרן | HELVI |
|---|---|
| תת קטגוריה | רתכות אלקטרוניות – ריתוך אלקטרודה MMA, רתכות גז CO2 – MIG Metal Inert Gas |
| הפעלה | חשמלי 230v חד פאזי |
| אחריות | אחריות לשנה |
| כלים/אביזרים |

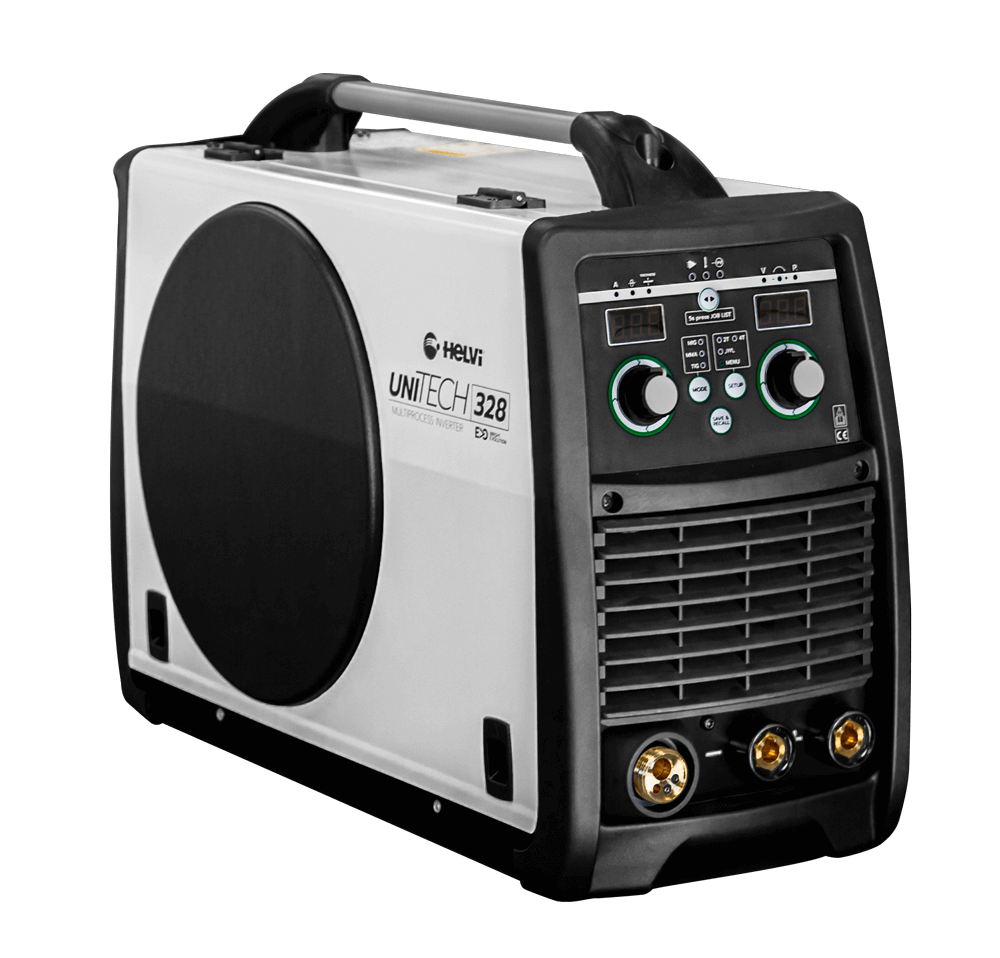

רתכת סינרגטית Co2 תלת פאזי עד 320A כולל צג דיגיטלי MIG/TIG/אלקטרודה
₪12,999.00
The UNITECH range has been created to simplifying the adjustment of the welding parameters, facilitating the welder’s job. Each function and parameter can be easily managed and configured thanks to the simplified control panel. UNITECH machines are designed to be used in Manual MIG mode. However, ynergic programs can be activated and selected from the front panel. Thanks to the high Duty Cycle and the user-friendly control panel, the HELVI UNITECH range is the perfect replacement for the “old” generation transformer welding machines. The innovative “SPEED SPOT” function, available on all HELVI UNITECH versions, guarantees perfect spot welding in MIG mode on any material. The HELVI UNITECH range already complies with the new regulations for Eco Design standards.
| Input voltage (3ph) | 400V – 50/60Hz | ||
| MIG | MMA | TIG | |
|---|---|---|---|
| Power 60% | 11,5 KVA | 9,9 KVA | 8,2 KVA |
| No load output voltage | 45 V | 69,5 V | 12 V |
| Amp. min-max | 30 ÷ 320 A | 20 ÷ 270 A | 10 ÷ 320 A |
| Duty Cycle 40° | 320A @ 40% 270A @ 60% 200A @ 100% | 270A @ 45% 250A @ 60% 180A @ 100% | 320A @ 40% 270A @ 60% 200A @ 100% |
| Insulation | H | ||
| Protec. Degree | IP23S | ||
| Machine (LxWxH) | 250x610x440 mm | ||
| Weight box/net | 30,2 / 28,55 Kg | ||
אספקה עד 6 ימי עסקים
