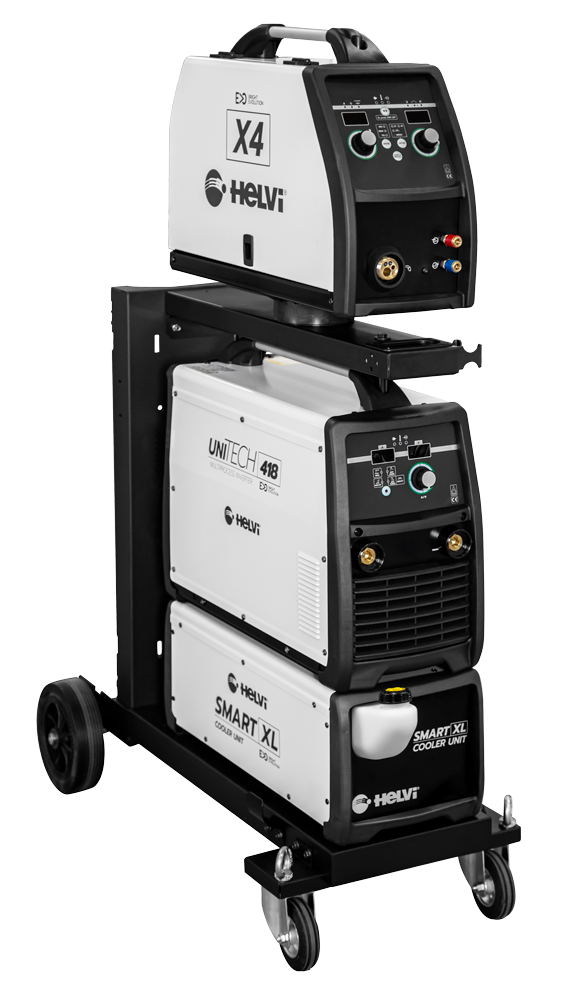

רתכת סינרגטית Co2 תלת פאזי עד 400A כולל מזין חיצוני עגלה וצג דיגיטלי MIG/TIG/אלקטרודה

19,999.00

המחיר כולל מע"מ
✓ אספקה עד 6 ימי עסקים✓ משלוח: ₪399✓ אחריות לשנה

The UNITECH range has been created to simplifying the adjustment of the welding parameters, facilitating the welder’s job. Each function and parameter can be easily managed and configured thanks to the simplified control panel. UNITECH machines are designed to be used in Manual MIG mode. However, ynergic programs can be activated and selected from the front panel. Thanks to the high Duty Cycle and the user-friendly control panel, the HELVI UNITECH range is the perfect replacement for the “old” generation transformer welding machines. Versions with separate feeder are equipped with a new generation wire feeder, whose high precision avoids potential annoying wire jams, making welding even more stable and precise. The innovative “SPEED SPOT” function, available on all HELVI UNITECH versions, guarantees perfect spot welding in MIG mode on any material. The HELVI UNITECH range already complies with the new regulations for Eco Design standards.

Input voltage (3ph) · 400V – 50/60Hz
  MIG MMA TIG
Power 60% 14,9 KVA 12,5 KVA 9,8 KVA
No load output voltage  45 V 60 V 12 V
Amp. min-max  30 ÷ 400 A 20 ÷ 350 A 10 ÷ 350 A
Duty Cycle 40° 400A @ 60%
310A @ 100%
350A @ 60%
310A @ 100%
350A @ 60%
310A @ 100%
Insulation H
Protec. Degree IP23S
Machine (LxWxH)  Power source 250x610x440 mm
Wire feeder 240x560x460 mm
Cooler Unit 250x600x230 mm
Trolley  460x1000x800 mm
Weight box/net  86,0 / 80,05 kg

אספקה עד 6 ימי עסקים

הדפסה
יצרן: HELVI
דגם: UNITECH EVO 418
מק״ט: 1095044
ברקוד: 10426100001
מספר מכירה: 126826
