מכונת פלזמה חד פאזי לחיתוך מתכת עד 15 מ"מ

9,999.00

המחיר כולל מע"מ
✓ אספקה עד 6 ימי עסקים✓ משלוח: ₪45✓ אחריות לשנה

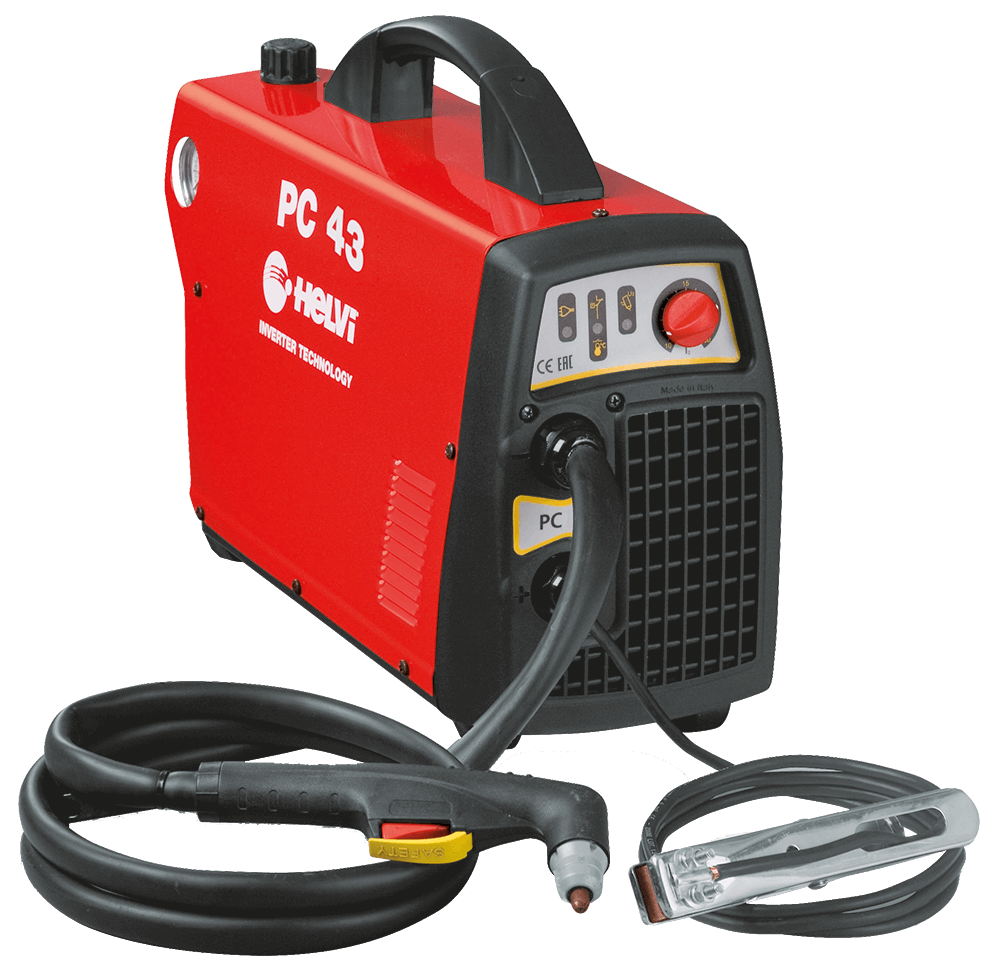

The Plasma, based on Inverter technology, guarantees accurate and clean plasma cut up to 15 mm thickness. Easy to handle and operate, this system is suitable for cutting thin materials at high speed. The front panel is provided with clear and simple graphics for the adjustment of the cutting current and to indicate the intervention of any of the internal safety devices. Extra operator protection is provided by a special Start system. It is well suited for auto body repair shops, air conditioning systems and general plate working.

Plasma torch PT40
Input voltage (1ph) 230V – 50/60Hz
Power 60% 3,3 KVA
No load output voltage 350 V
Range 15 ÷ 40 A
Cutting current 40A @ 20%
25A @ 60%
20A @ 100%
Severance 15 mm
Quality cutting 13 mm
Air pressure 4 – 5 bar
Air capacity 100 l/min
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 155x430x320 mm
Package (LxWxH) 260x560x355 mm
Weight box/net 11,8 / 10,8 kg

אספקה עד 6 ימי עסקים

הדפסה
יצרן: HELVI
דגם: PC 43
מק״ט: 1075321
ברקוד: 111800001
מספר מכירה: 126856
