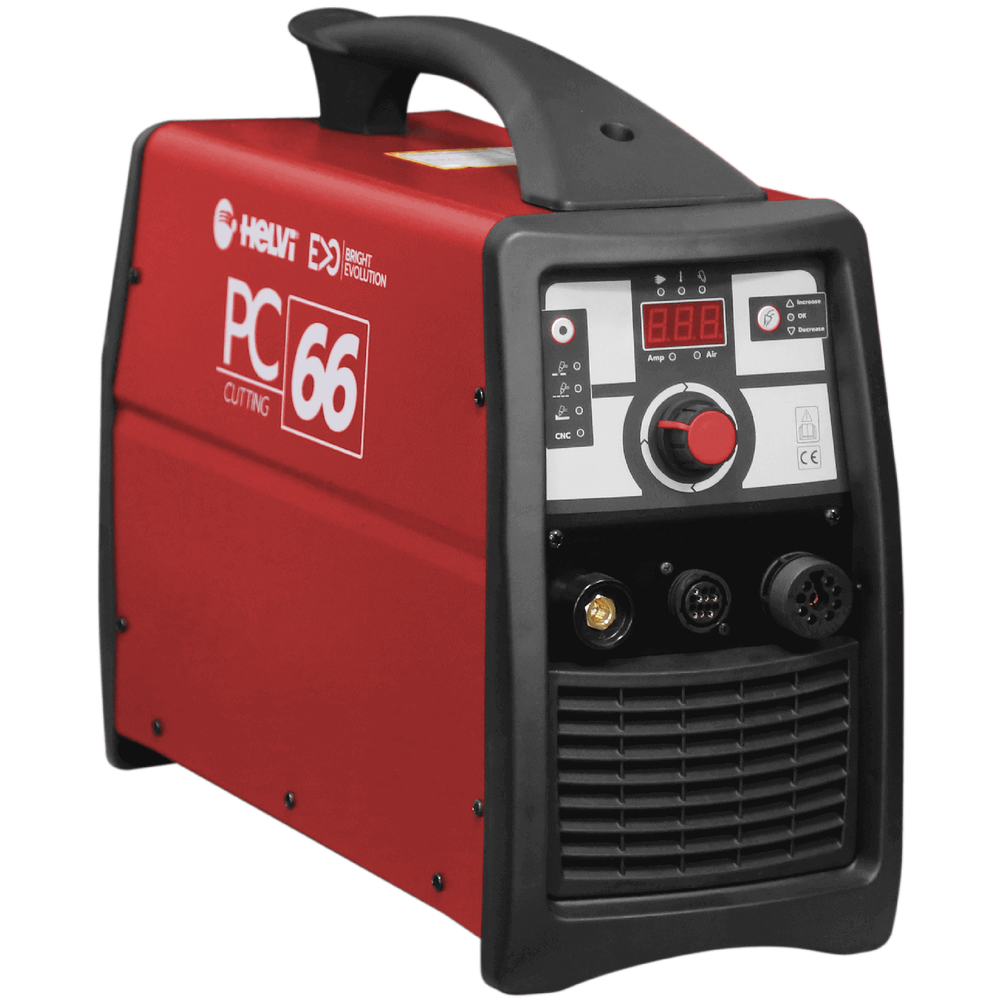

מכונת פלזמה תלת פאזי לחיתוך מתכת עד 26 מ"מ כולל צג דיגיטלי

Plasma cutters, based on Inverter technology, guaranteeing accurate and clean plasma cut. Easy to handle and operate, these systems are suitable for cutting materials at high speed. The available cutting modes are: continuous, grid, gouging and CNC. Possibility to set the cutting current and to adjust the air pressure in a simple and precise way thanks to the handy knob. The EVO plasma cutters can signal the lacking or excessive air pressure through dedicated LEDs located on the front panel.

Plasma Torch	H.70 (70 A) · H.FIT
Input Voltage	(3ph)  400V  50/60Hz
Power 50%	11,8 KVA
Max input current	16,5 A
U0	380 V
Range	20 ÷ 65 A
Cutting current	65A @ 60% 50A @ 100%
Clean cutting capacity 25cm/min	22 mm
Max cutting capacity	26 mm
Severance	30 mm
Pierce	16 mm
Required air capacity	220 l/min @ 5 bar
Insulation	H
Protec. Degree	IP22S
Power Source (LxWxH)	195x495x395 mm
Power Source Box  (LxWxH)	345x645x440 mm
Weight box (machine + torch) /net	23,3 / 22,3 kg
