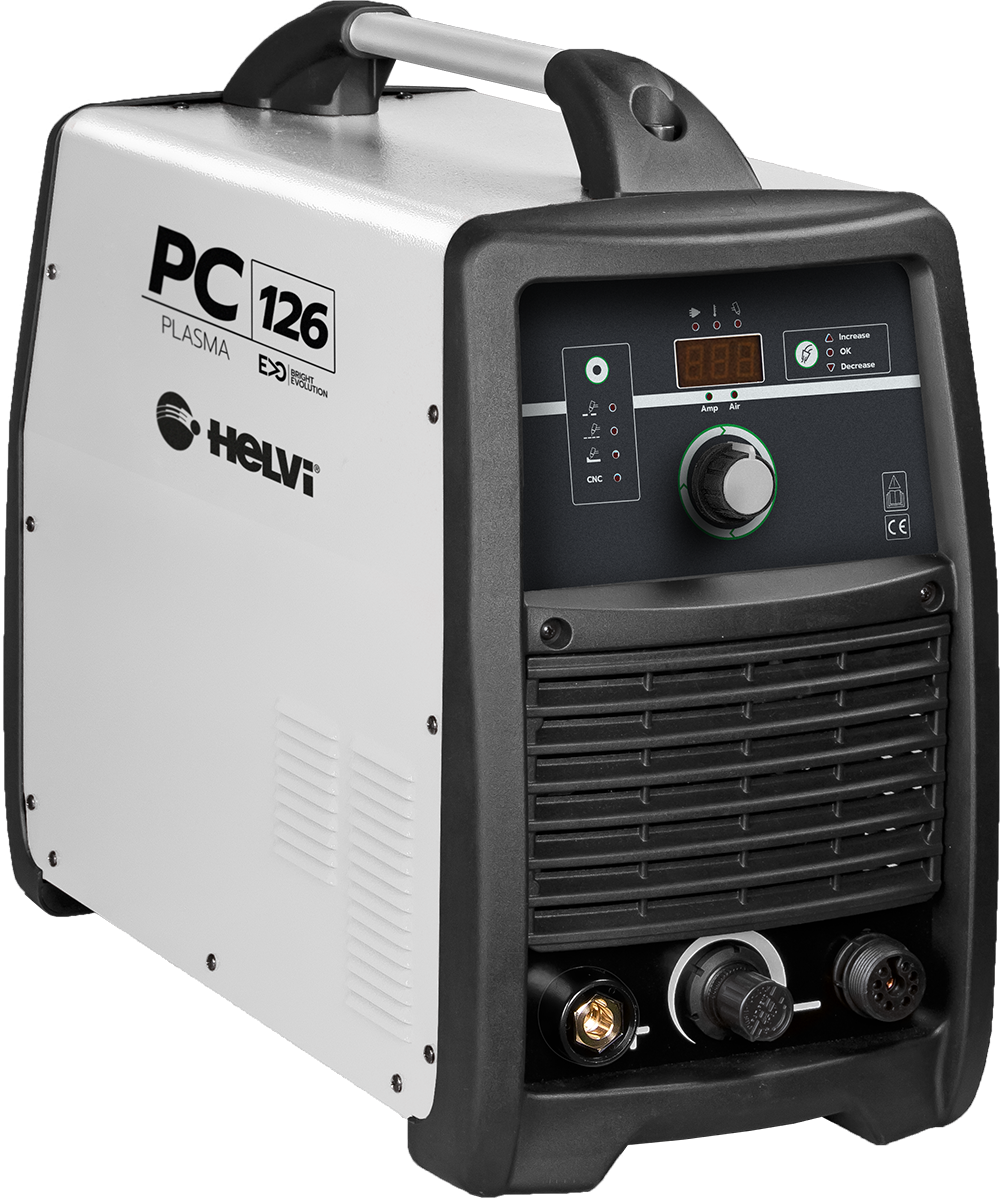

מכונת פלזמה תלת פאזי לחיתוך מתכת עד 50 מ"מ כולל צג דיגיטלי

9,999.00

המחיר כולל מע"מ
✓ אספקה עד 6 ימי עסקים✓ משלוח: ₪45✓ אחריות לשנה

lasma cutters, based on Inverter technology, guarantee accurate and clean plasma cut. Easy to handle and operate, these systems are suitable for cutting materials at high speed. The front panel is provided with clear and simple graphics for the adjustment of the cutting current and to indicate the intervention of any of the internal safety devices. Designed to work with either PT, ST or PH torches according to your cutting requirements. The use of ST/PH torches improves the maximum cutting performance and increases the speed at which the cutting can be achieved. Suitable also for cutting with small CNC machines thanks to the specifically designed interface (connector on the back side for torch trigger, arc on signal and arc voltage reference)

Input Voltage (3ph)  220V  50/60Hz (3ph)  400V  50/60Hz
Power 100% 15 KVA 15 KVA
Max input current 49 A 22 A
No load voltage 290 V 320 V
Range 20 ÷ 105 A 20 ÷ 105 A
Cutting current 105A @ 100% 105A @ 100%
Insulation H H
Protec. Degree IP22S IP22S
Dimens. (LxWxH) 255x610x450 mm 255x610x450 mm
Box (LxWxH) 400x770x510 mm 400x770x510 mm
Weight box/net 47 / 45 kg 47 / 45 kg

אספקה עד 6 ימי עסקים

הדפסה
יצרן: HELVI
דגם: PC EVO 126
מק״ט: 1095433
ברקוד: 111800001
מספר מכירה: 126858
