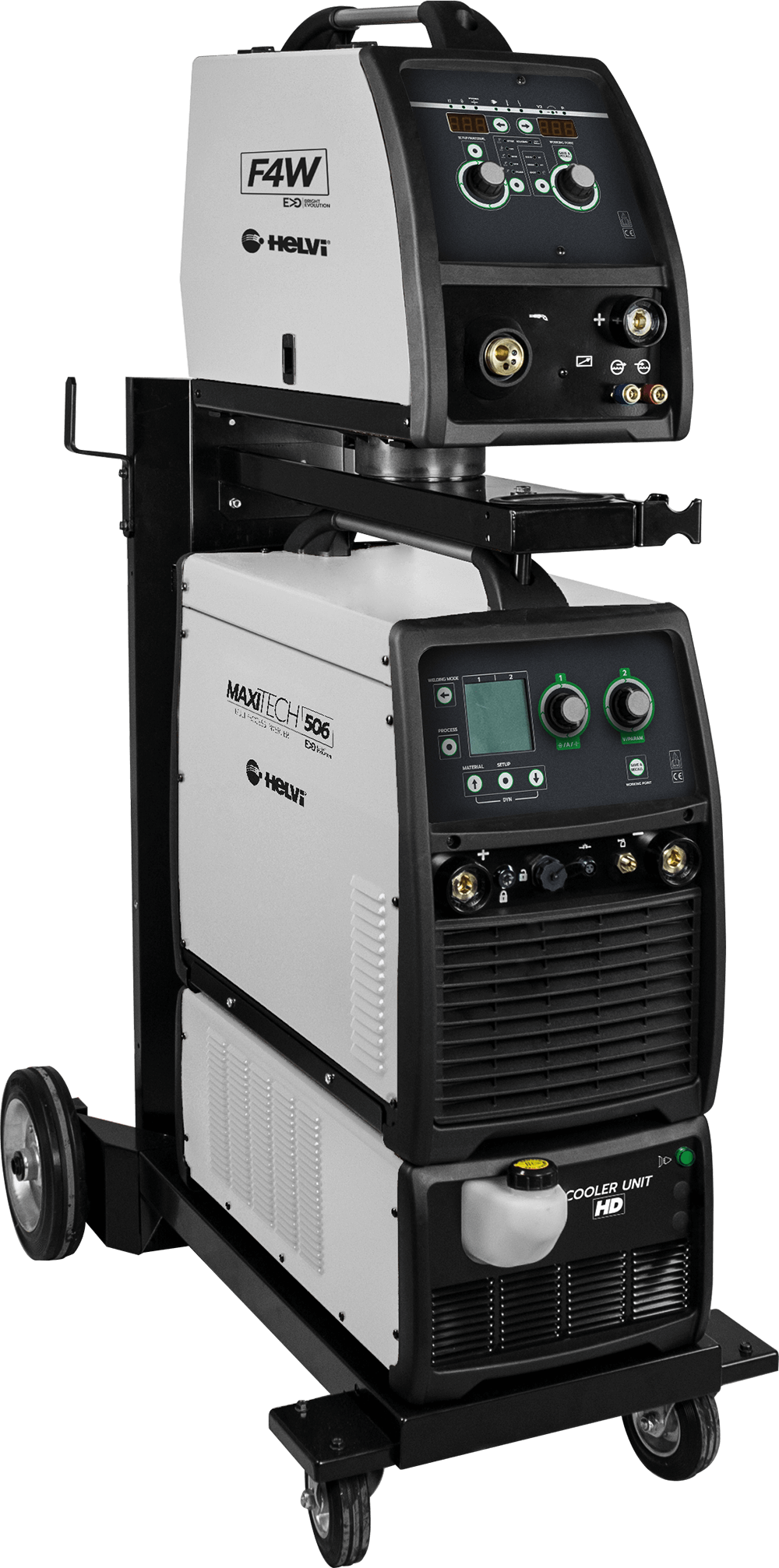

רתכת סינרגטית Co2 תלת פאזי עד 500A כולל מסך LCD מזין חיצוני ועגלה MIG/TIG/אלקטרודה

✓ אחריות לשנה

Microprocessor-controlled, multi-process welding inverter compact or with separate wire feeder suitable for MIG/MAG (Standard: manual, synergic. Optional: pulse, double-pulse and root welding), TIG-DC (continuous and pulse) and MMA welding . The large 3.3” display shows all the welding parameters, and makes their setting easy and intuitive. In synergic/pulse MIG/MAG welding, the microprocessor ensures easy and quick setting of the programs thus always guaranteeing optimal arc stability and high welding quality. MIG-MAG features: continuous – pre-set synergic curves – storage of custom welding settings – 2T/4T, spot function selection – pre-post gas time regulation – electronic reactance, soft start, burn back time, hot start, slope down, crater filler. TIG DC features: lift arc – continuous and pulse welding – 2T/4T – Current, final current up/down slope regulation. MMA features – antisticking – adjustable hot start and arc force. Ideal for professional use, medium-light workshops, metallic furnishings fabrication, industrial and automotive bodyshop, shipbuilding and piping. Thanks to an excellent arc control you can obtain high quality deposition. Possibility to expand the power source with optional function: single pulse, double pulse, root welding. You can also install optional interface to use Spool-gun or Push-pull torch, with analog or digital control. The user can save and recall more then 200 working points and to store them in a customized JOB LIST. Easy to update thanks to USB interface. For Maxitech models 386-506-676, from the separate wire-feeder the user can set all the parameters up to a distance of 100 meters from the power source.

Input voltage (3ph) 400V – 50/60Hz
Power 60% 22 KVA
  MIG MMA TIG
No load output voltage 82 V 82 V 12V
Amp. min-max  30 ÷ 500 A 10 ÷ 500 A 5 ÷ 500 A
Duty Cycle 40° 500A @ 60%
400A @ 100%
500A @ 60%
400A @ 100%
500A @ 60%
400A @ 100%
Insulation H
Protec. Degree IP23S
Dimensions (LxWxH) Generator 320x650x500 mm
Wire feeder 270x580x460 mm
Cooler Unit 315x630x235 mm
Trolley HD 520x1050x1065 mm
Weight box/net 139.6 / 131.0 kg

המלאי אזל

הדפסה
יצרן: HELVI
דגם: MAXITECH EVO 506
מק״ט: 1095299
ברקוד: 10426100001
מספר מכירה: 126833
